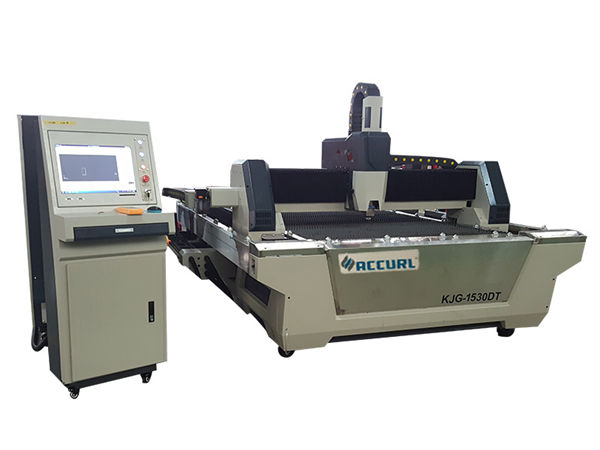

2000w fiber laser cutting equipment gear / rack transmission for round tube

detalye ng Produkto

Sertipikasyon: CE / FDA

Mga Tuntunin sa Pagbabayad at Pagpapadala:

Minimum na Dami ng Order: 1 SET

Presyo: USD Per SET

Mga Detalye ng Packaging: Kahoy na kahon na may bakal na nagbubuklod na sinturon

Oras ng Paghahatid: 20-30 Araw ng Trabaho

Mga Tuntunin sa Pagbabayad: T / T, L / C, Western Union

Kakayahang Nagtustos: 2000 Yunit bawat taon

Detalyadong Paglalarawan ng Produkto

Uri ng Laser:	Pinagmulan ng Fiber Laser	Lugar ng Pagputol:	Diameter 20-200mm
Paglamig na Mode:	Pagpapalamig ng tubig	Application:	Naaangkop na Materyales
Paggawa ng Boltahe:	380V / 50Hz	Pamamaraan ng Pokus:	Sumusunod At Awtomatikong Ayusin ang Pokus
Paraan ng Paghahatid:	Gear At Rack	Power ng Laser:	500W 1000W 2000W 4000W
Mag-load ng Maximento ng Loob:	1000kgs	X / Y Axis Positio:	0.05 / 1000mm
Bilis ng Pagputol:	0-60000mm / min	Klase:	Klase 4 Laser

Paglalarawan ng Produkto

Uri ng Laser	Laser hibla
Tatak ng Laser	IPG / Maxphotonics
Power ng Laser	500W (1000W / 2000W / 4000W opsyonal)
Nagtatrabaho lugar	1500mmX3000mm 1300x2500mm Opsyonal
Mesa sa Paggawa	Nakatakdang Talahanayan ng Paggawa
System ng Kontrol	PMAC full-closed loop servo control
Nagmamaneho sa ngayon	Double rack pagmamaneho sa pagmamaneho
Bilis ng Idle / Speed	72m / min / 36m / min
Posisyoning Katumpakan	0.05mm
Proteksyon System	Proteksyon ng pagtakip
Laser Head	Precitec / Laser Mech
Power Supply	AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz
Kabuuang kapangyarihan	7KW ~ 11KW
Espasyo sa sahig	5.6mX3.2m (naayos na talahanayan)
Pangunahing Koleksyon	Ang software ng metal na nesting, dalawahan-presyon ng gas ruta ng 3 uri ng mga mapagkukunan ng gas, dynamic na pokus, remote controller, atbp

Pagputol ng Detalye ng Detalye ng Pipe

Haba ng Pagputol	6000mm
Diameter	20mm-200mm
Min natitirang materyal	250mm
X axis	230mm
Y axis	6500mm
Z axis	175mm
Katumpakan ng posisyon	0.05mm
Katumpakan ng Repormasyon	0.03mm
Max paglipat ng bilis para sa X axis	40m / min
Max bilis ng paglipat para sa Y axis	500mm / s
Pagpapabilis	1 G
Laki (L * W * H)	12000 * 1800 * 2400mm
Timbang	3800kg

Kalamangan

1) Advanced performance for different shape of tube
It can meet the demand of round tube, square tube and other profiled tube processing.

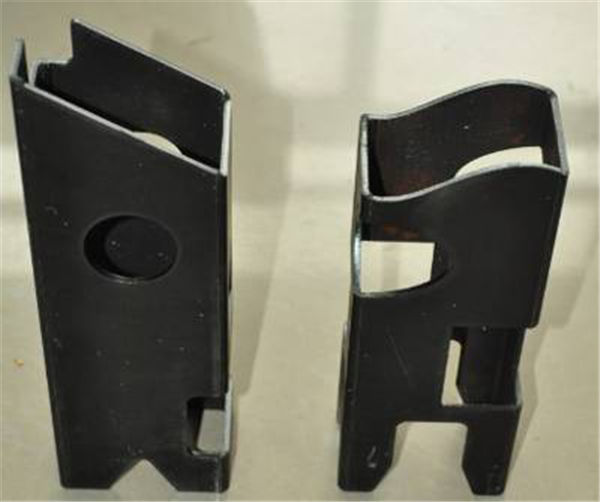

2) Different cutting shape
All kinds of graphics cutting can be done for the square tube.
3) Special shape cutting for round tube
Square hole, waist shaped hole made for round pipe.
4) Without no cutting slag
With special slag receiving process, guaranteeing no slag left inside of wall.
5) Specific fixture customized
Different requirement of fixture can be customized according to customer's demand.
6) Powerful computer system
With good nesting software and CNC system, it is simple and easy to learn for operators, improving materials utilization and reducing cost.
7) Clean cutting and environmentally friendly.
With advanced exhaust systems, it is easy and convenient to collect the waste materials during the cutting.
8) Customized design
Effective tube length can be customized from 100-6000mm.
9) With auto-loading and auto-unloading device
The material auto-loading and auto-unloading device can be integrated in the tubing machine, which improve the efficiency and reduce the workload greatly.
