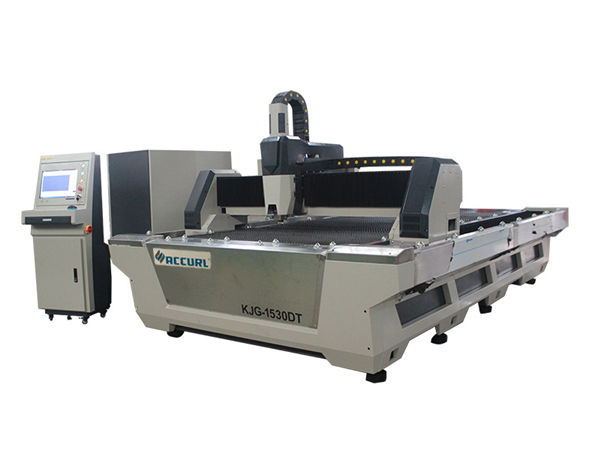

high accuracy industrial laser cutting machine 1000w for carbon steel cutting

detalye ng Produkto

Sertipikasyon: CE

Mga Tuntunin sa Pagbabayad at Pagpapadala:

Minimum na Dami ng Order: 1 SET

Presyo: USD Puwede

Mga Detalye ng Packaging: Plywood na kahoy na kahon na may metal belt

Oras ng Paghahatid: 15 - 30 Mga Araw sa Trabaho

Payment Terms: T/T, D/A

Kakayahang Nagtustos: 2000 Yunit bawat taon

Detalyadong Paglalarawan ng Produkto

Uri ng Laser:	Fiber Laser	Lugar ng Pagputol:	1500 * 3000mm
Paglamig na Mode:	Pagpapalamig ng tubig	Application:	Pagputol ng Materyal ng metal
Working Table:	Talahanayan ng Talim	Power ng Laser:	1000W
Pag-posisyon ng Katumpakan:	± 0.05 Mm	Z Axis Landas:	100mm
Dalas:	50 / 60Hz	Bilis ng Pagputol:	Naaayos
Control Software:	Cypcut	Pangalan ng Produkto:	1000W Industrial Laser Cutting Machine High Accuracy For Carbon Steel Cutting

Mga Tampok ng Fiber Metal Laser Cutting Machine

Ang High-power laser cutting machine na may pinakamataas na katumpakan sa China, maaari nitong i-cut ang disenyo ng metal na pinto na may malaking sukat at perpektong gupitin hanggang sa 22mm banayad na bakal, 12mm hindi kinakalawang na asero, 10mm aluminyo, 5mm tanso, 4mm tanso at 4mm galvanized steel sheet.

Bentahe ng Bodor CNC Metal Tube Laser Cutting Machine:
1. Ang motor-driver na motor sa rotary na aparato ay malayang ayusin nang malaya, Madaling-gumana, mababa ang maingay, mataas na bilis ng pag-ikot, mataas na katumpakan.
2. Ang linya ng intersecting ay maaaring i-cut. Pinakamahusay na pagpipilian para sa pagbuo ng pantubo.
3. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
4. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
5. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
6. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
7. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
8. Easy operations: fiber line transmission, no adjustment of optical path.

1000W fiber laser cutting machine cutting parameters

Materyal	Pagputol ng kapal (mm)	Pagputol bilis (m / min)	Pagputol ng gas	Ang pagputol ng presyon	Nozzle	Collimator / Pokus
Carbon steel	0.5	30-40	Air	6	1.5 solong layer	75/125
	0.8	20-25	Air	8	1.5 solong layer	75/125
	1	18-22	Air	10	2.0 solong layer	75/125
	2	5-6.5	Oxygen	3.5	1.2 dobleng layer	75/125
	3	3-3.5	Oxygen	0.5-1	1.2 dobleng layer	75/125
	4	2-2.3	Oxygen	0.5	1.2 dobleng layer	75/125
	5	1.5-1.8	Oxygen	0.5	1.2 dobleng layer	75/125
	6	1.2-1.4	Oxygen	0.5	1.5 dobleng layer	75/125
	8	0.9-1.2	Oxygen	0.5	2.0 dobleng layer	75/125
	10	0.7-0.8	Oxygen	0.5	2.5 dobleng layer	75/125
	12	0.5-0.65	Oxygen	0.5	2.5 dobleng layer	75/125
Hindi kinakalawang na Bakal	0.5	30-40	Nitrogen	7	1.5 solong layer	75/125
	0.8	22-25	Nitrogen	10	1.5 solong layer	75/125
	1	20-23	Nitrogen	12	1.5 solong layer	75/125
	2	6-7	Nitrogen	15	2.0 solong layer	75/125
	3	2.5-2.8	Nitrogen	18	2.0 solong layer	75/125
	4	0.8-1.2	Nitrogen	18	2.0 solong layer	75/125
	5	0.6-0.8	Nitrogen	18	2.0 solong layer	75/125
Aluminyo	0.5	20-25	Air / Nitrogen	8	1.5 solong layer	75/125
	0.8	15-18	Air / Nitrogen	9	1.5 solong layer	75/125
	1	10-12	Air / Nitrogen	12	1.5 solong layer	75/125
	2	3-3.5	Air / Nitrogen	18	2.0 solong layer	75/125
	3	1-1.5	Air / Nitrogen	18	2.0 solong layer	75/125
Tanso	0.5	22-30	Nitrogen	12	1.5 solong layer	75/125
	0.8	13-17	Nitrogen	12	1.5 solong layer	75/125
	1	10-12	Nitrogen	15	1.5 solong layer	75/125
	2	2-3	Nitrogen	18	2.0 solong layer	75/125
	3	1-1.3	Nitrogen	18	2.0 solong layer	75/125
Copper	0.5	15-18	Oxygen	12	1.5 solong layer	75/125
	0.8	8-12	Oxygen	12	1.5 solong layer	75/125
	1	5-7	Oxygen	12	1.5 solong layer	75/125
	2	0.8-1.2	Oxygen	15	2.0 solong layer	75/125

Teknikal na Parameter

Working Area	3000 * 1500mm
Controller + Heigh tagasunod	Cypcut
Pinagmulan ng Laser	Fiber Laser Source 1000W
Haba ng Wave	1070nm ± 10nm
Laser Head	Opsyonal
Gear at Rack	Alemanya
Patnubay sa Rail	Taiwanese HIWIN
Posisyoning Katumpakan	≤ ± 0.04mm
Pagputol ng Pagkapal	1-6mm
Ang bilis ng pagputol ng Max	40000mm / min (ayon sa mga materyales)
Paggawa boltahe	AC220V / 110V ± 10% 50HZ / 60HZ
Lapad ng linya	≤0.12mm
Paghahatid	Yaskawa servo 850W + FASTON reducer
Z axis	Yaskawa 400W + preno
Palamig	Pagpapalamig ng tubig
Istraktura	10mm Thickness Welded steel tube, Aluminum Alloy Gantry
Konsumo sa enerhiya	≤7.5KW

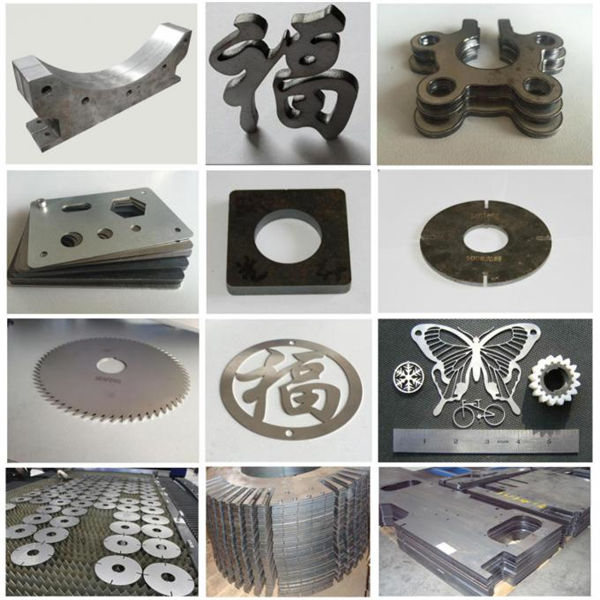

Applied materials of 1000W Fiber Laser Cutting Machine

Ang hibla ng pamutol ay pangunahing ginagamit para sa pagputol ng bakal ng carbon, banayad na asero, hindi kinakalawang na asero, silikon na bakal, aluminyo haluang metal, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, tanso at maraming uri ng mga materyales na metal. Ito ay isang cutter ng cnc laser ay maaaring magamit upang gawin ang mataas na paggupit ng katumpakan. Maaari rin itong tawaging fiber cutter machine, fiber optic laser cutter, laser cutter para sa metal, fiber cutter, carbon steel cutting, cnc laser cutter.
