high speed sheet metal cnc cutting machine stable z axis automatic tracking

mataas na bilis sheet metal cnc cutting machine matatag z axis awtomatikong pagsubaybay

detalye ng Produkto

Mga Tuntunin sa Pagbabayad at Pagpapadala:

Minimum na Dami ng Order: 1

Presyong pwedeng pag-usapan

Mga Detalye ng Packaging: kahoy na pakete

Oras ng Paghahatid: 15 araw ng pagtatrabaho

Mga Tuntunin sa Pagbabayad: T / T

Kakayahang Nagtustos: 1000 Yunit bawat Buwan

Detalyadong Paglalarawan ng Produkto

Pangalan ng Produkto:	Plato At Tubes Fiber Laser Cutting Machine	Uri ng Laser:	Fiber Laser
Power ng Laser:	500w / 800w / 1000w	Laki ng Paggawa:	3000 * 1500mm
Garantiya:	12 Buwan	After-Sales Service:	Mga Engineer Service Overseas
Timbang:	3000 Kgs	Pakete:	Kaso sa kahoy

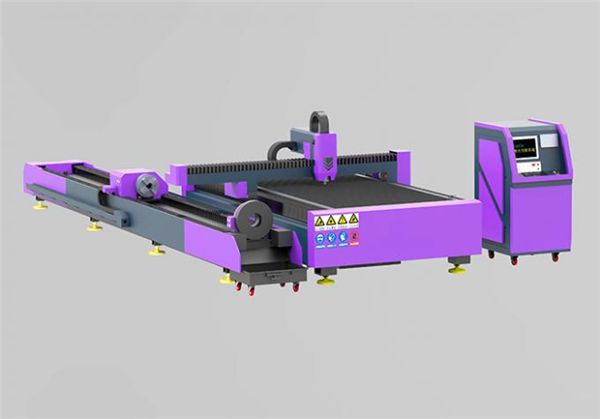

Ang Isang Machine, Dual Use, ay maaaring mag-cut ng metal tube at metal plate sa isang beses
In order to meet the increasingly complex needs of consumers, Rise Laser is targeted at market demand, independently developed RL3015 sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.

Paglalarawan ng Produksyon

. 300w, 500w, 800w, 1000w, 1500w 3000w Maxphotonics fiber optic laser optional.
. Fiber Cutting aluminum, carbon steel, iron, stainless steel, silver, hardware, sheet metal processing, metal tube pipe materials ,etc..
. China Top manufactuers, Jinan G.Weike, best price and quality, with CE & FDA & ISO certificates.
. Fiber Cutting thickness 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, up to 20mm.
. RL3015 Tube pipe fiber laser cutting machine, 1500*3000mm.
. Price for 1000W Stainless steel silver metal tube pipe CNC fiber laser cutting machine.

Stable Z axis automatic tracking function

The most advanced capacitor non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board to avoid the material is not smooth, the focal length of the material caused by the problem of scrapped.
Because the cutting head is equipped with non-contact sensing device, under the control of the system, can achieve a stable Z-axis floating function, directly eliminate the uneven sheet on the cutting quality, CNC laser cutting machine has a high cutting yield.

Katawang katawan

Using gantry type mechanic structure , high precision ,good quality, stable performance.
Machine bed:The use of high-quality steel and pipe welded from the frame structure, the machine is annealed, the second aging treatment, large-scale milling machine precision processing, these design and processing means to ensure that the machine has excellent shock resistance, high rigidity and stability.
Waste recycling equipment:Equipped with trolley, clean up the blanking without lifting the table.

Transmission system

The use of bilateral rack gear transmission and imported linear guide, and the use of dual-drive servo motor drive system, effectively ensuring the laser cutting speed and accuracy.

Kontrol ng system

Ang paggamit ng propesyonal na PC pang-industriya na computer na operasyon, grapikong interface, madaling patakbuhin, malayang malayang disenyo ng propesyonal na paggupit ng kontrol ng iba't ibang mga graphics at teksto, pagproseso ng real-time, suportahan ang CAD, CorelDraw at iba pang propesyonal na software sa pagmamapa.
High-quality industrial computer control operation
High efficient, easy to operate CNC cutting system
Z axis automatic tracking function
CNC control control system
Ang sistema ng pagputol ng pagputol ng CNC ay ang paggamit ng high-performance control card, batay sa pag-unlad ng Windows XP Professional, ganap na nag-docking kasama ang sistema ng control ng CNC, samakatuwid, ang kontrol sa real-time at pag-upgrade ng software sa pagitan ng makina at laser mapagkukunan ay mas maginhawa at mabilis.

Teknikal na Parameter

Laser source: Maxphotonics fiber laser source
Fiber laser power: 500W, 800W, 1000W, 1500W, 2000W, 3000W (Opsyonal)
Sukat ng pagtatrabaho: 3000 * 1500mm
Katumpakan ng X at Y ang pagpoposisyon: + -0.05mm
Transmission mode: import Alemanya Atlanta mataas na precision gear at rack na may dobleng pagmamaneho rack fiber laser cutting machine

^{Ang kapangyarihan ng laser}	^{500w 750w 1000w 1500w 3000w fiber opsyonal}
^{Pagputol ng lugar}	^{1500mm * 3000mm}
^{Ang laki ng makina}	^{1360 * 780 * 1100mm}
^{Ang bilis ng pag-ukit}	^{0 - 60,000mm / min}
^{Pag-reset ng kawastuhan sa pagpoposisyon}	^{± 0.05mm}
^{Paggawa boltahe}	^{AC 110 - 220V ± 10%, 50 - 60Hz}
^Kuryente	^<1,000W
^{Temperatura ng pagpapatakbo}	^{0 - 45 ° C}
^{Kahalumigmigan ng pagpapatakbo}	^{5- 95%}
^{Pinakamababang character na humuhubog}	^{Ingles 1 x 1mm}
^{Suportado ang format na graphic}	^{BMP, PLT, DST, DXF, at AI}
^{Sistema sa pagmamaneho}	^{500w 800w 1000w 1500w 3000w fiber opsyonal}
^{Mode ng paglamig}	^{sistema ng paglamig at proteksyon}
^{Mga pantulong na pantulong}	^{Exhaust-fans, air-exhaust pipe}
^{Pagkontrol ng software}	^{Cypcut control system}
^{Compatible software}	^{CorelDraw AutoCAD Photoshop}
^{Net Timbang}	^{3000kg (nakasalalay sa mga modelo)}

1.Germany Precitec / Swiss Raytool laser ulo, opsyonal na awtomatikong taas na focus na tagasunod.
2.Maxphotonics hibla laser generator, 500W, 800W, 1KW, 2KW, 3KW, 4KW, 6KW, 8KW Opsyonal
3.Japan Yaskawa servo motor system.
4.Taiwan HIWIN linear gabay na tren.
5. sistema ng pagkontrol ng Cypcut.
6.BEST Alemanya Atlanta double driver ng rack gear.
7.Germany Neugart reducer. ay ginagamit sa ibaba:
3. Ang mga nangungunang tagagawa ng China, Jinan G.Weike, pinakamahusay na presyo at kalidad, kasama ang mga sertipiko ng CE & FDA & ISO
4. Fiber Cutting kapal 1mm, 1.5mm, 2mm, 3mm, 5mm, 6mm, hanggang sa 20mm
5. RL3015 Tube pipe fiber laser cutting machine, 1500 * 3000mm
6. Presyo para sa 1000W Hindi kinakalawang na asero pilak metal tube pipe CNC hibla laser cutting machine.

Application

1. Clean cut edges without burr for more efficient material utilization and reduced secondary operations.
2. Pagputol ng iba't ibang mga kapal ng materyal at mga kumbinasyon sa isang operasyon
3. No material deformation due to contactless material processing.
4. Lubhang makokontrol, maaaring ulitin at tumpak na pagproseso.Etc.
Dahil ang disenyo ng sheet at pipe integrated, ang kakayahang umangkop sa industriya ng RL3015 ay lubos na pinahusay, kasama na ang petrolyo at pipe material, fitness kagamitan at iba pang pipe material na pangunahing mekanikal na pagproseso, automotive Manufacturing, Machine cabinet at iba pang mga board material na pangunahing mekanikal na pagproseso atbp.
