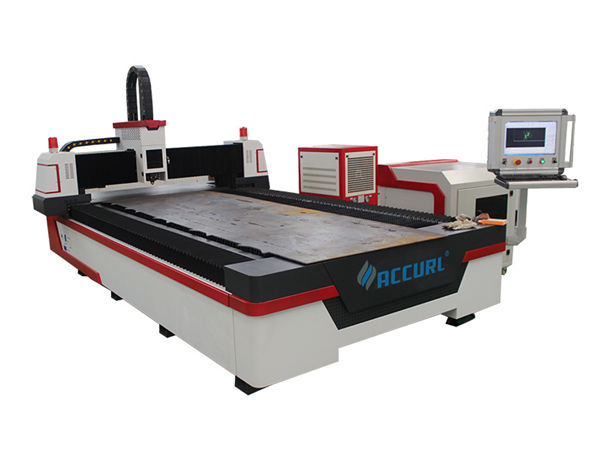

fiber optical path industrial laser cutting machine compact with automatic nesting system

detalye ng Produkto

Sertipikasyon: ISO9001: 2008

Mga Tuntunin sa Pagbabayad at Pagpapadala:

Minimum na Dami ng Order: 1

Presyo: pag-uusap

Mga Detalye ng Packaging: Standard Wooden Case

Oras ng Paghahatid: 7-15 araw

Kakayahang Nagtustos: 1000 yunit / buwan

Detalyadong Paglalarawan ng Produkto

Pangalan ng Produkto:	Fully Enclosed Fiber Laser Cutting Machine	Fiber Laser:	1000W
Nagtatrabaho Area:	3000 * 1500mm	Katumpakan:	± 0.03-0.05mm
Power Supply:	380v	Garantiya:	1 taon

Pangunahing Mga Tampok

It is with full cover can use for both cutting metal sheet and pipes fiber laser cutting machine.Adopt Maxphotonics laser source and high precision rack and linear guide to transmit.
Can cut lines and holes with different from different directions on the pipe.
Can cut inclined section at the end of the pipe.
Can cut beanch pipe intersected with the main circular pipe.
Can cut square hole,waist-shaped hole and circular hole on the pipe.
Can truncate the pipe.
Can cut all kinds of graphics on the surface of the square pipe.
Can cut different sizes metal sheets.
Can cut holes on the molding box.

Characteristics

1, High speed, high precision, high efficiency and low cost
2, Easy on operation, fiber optical path, without tediously adjustment on optical path
3, Compact structure, good sealing, strongly adaptable to changes in the environment.
4, With the perfect automatic nesting system which can save time, save the materials, the sheet utilization ratio up to 95%

Techinical Parameter

^{LASER SOURCE}	^{Maxphotonics LASER}
^{CUTTING HEAD}	^{RAYTOOLS BT-240}
^{MAHAL NA MODE}	^{DUAL DRIVE}
^TRANSMISSION	^{TAIWAN APEX}
^{GABAY NA RAIL}	^{TAIWAN TPI}
^{SERVO MOTOR AND DRIVER}	^{4 Mga Setting ng YASKAWA MULA SA JAPAN}
^REDUCER	^{FRANCE MOTOREDUCER}
^{PAMPALAMIG NG TUBIG}	^TEYU
^{KONTROL NA SISTEMA}	^{CYPCUT MULA SA SHANGHAI, CHINA}
^COMPUTER	^{KOMPUTER NG INDUSYONAN}
^{KAPANGYARIHAN NG KAPANGYARIHAN}	^{3 LABAN AC 380V 50HZ}
^{KABUUANG TIMBANG}	^3.05MTS
^{TERMINAL ROW}	^{FRANCE SCHNEIDER}
^RELAY	^{FRANCE SCHNEIDER}
^{SOLENOID VALUE}	^{SMC JAPAN}
^{PROPALIYAL NA VALUE}	^{JAPANESE SMC}
^{GAWAIN SA GAWAIN}	^{3000 * 1500 MM}

Ang Mga Bahagi ng accessory

1.High precision screw imported CNC fiber laser cutting machine. It use Maxphotonics fiber laser laser
fiber laser source is small and light, which helps to move easily. Its easy integration, stable performance and good quality are well guaranteed.
2. Espesyal na Tube Fiber Laser Cutter Head at Awtomatikong Sumusunod na System.

Ang mga halimbawa at aplikasyon

Fully Enclosed Fiber Laser Cutting Machine for metal pipes can be applied for Different profiles,including round pipes, square tubes, rectangular tubes or triangular tubes,etc,of carbon steel, stainless steel,etc;
Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry, sports industry.
