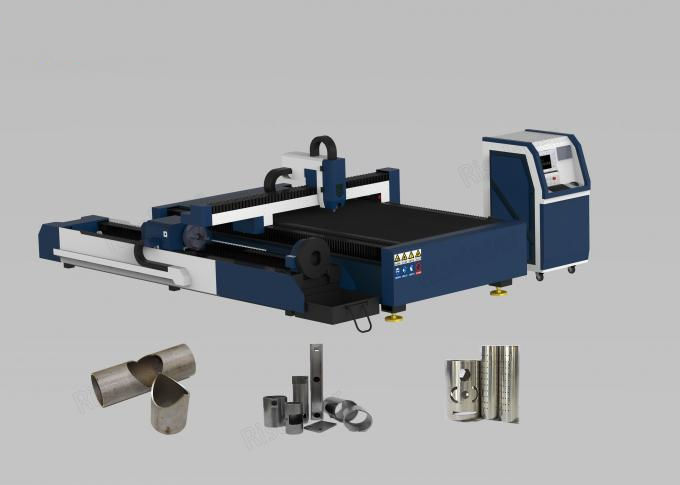

rotary device fiber laser metal cutting machine

detalye ng Produkto

Sertipikasyon: ISO9001: 2008
Mga Tuntunin sa Pagbabayad at Pagpapadala:
Minimum na Dami ng Order: 1
Presyo: NEGOTIATION
Mga Detalye ng Packaging: Wooden Case
Delivery Time: 14 DAYS
Payment Terms: Western Union, T/T
Kakayahan ng Supply: 2000 UNITS

Detalyadong Paglalarawan ng Produkto

Pangalan ng Mga Produkto:	Fiber Laser Cutting Machine	Uri ng Laser:	Fiber Laser
Application ng Laser:	Pagputol ng Laser	Aplikasyon ng Application:	Metal
Nagtatrabaho Area:	3000 * 1500mm	CNC O Hindi:	Oo
Paglamig na Mode:	Pagpapalamig ng tubig

Description of laser cutting machines

The whole fiber tube and plate laser cutting machine consist of machine tool, motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Kalamangan

1. Controller gamit ang isang touch screen operating system, madaling mapatakbo.

2. 3HP high-power na chiller ng tubig upang mapanatili ang palaging ulo ng laser sa isang komportableng temperatura ng pagtatrabaho.

3. 500-1500W Pinagmumulan ng hibla laser ng Maxphotonics, at mataas ang rate ng conversion ng photoelectric.

4. Awtomatikong pokus sa pagputol ng ulo ng laser (metal sensor) pagpili ng mga kilalang tatak ng USA, na may mataas na sensitivity, mahusay na katatagan.

5. Japan's servo motor and drive to improve the cutting speed and stability.

6. Kombinasyon ng paggalaw ng bola at sistema ng feed.

Parameter ng Teknikal

Item	Parameter
Uri ng laser	Laser hibla
Haba ng haba	1070-1080nm
Ang kahusayan ng conversion ng electro-optical	25-30%
XYZ na Ruta	3025mm / 1525mm / 100mm
Pagputol ng lapad ng tahi	0.1-0.2mm
Ulitin ang kawastuhan ng posisyon	± 0.05mm / 500mm
Katumpakan sa posisyon	± 0.05mm / 500mm
Bilis ng Max.Moving	60000mm / min
Ang bilis ng Max.Accerlation	0.8g
Biglang timbang	500kg
Bigat ng makina	2300kg
Kinakailangan na Power	220V 50Hz / 60Hz
Laki ng makina (L * W * H)	4500mm * 2450mm * 1700mm

Inilapat na Patlang ng laser cutting machine

Metal tube cutting machine is professional in cutting varies metal tube and sheet.
Cutting material: stainless steel, carbon steel, mild steel, iron, galvanized steel, titanium steel, silicon steel, brass, aluminum, titanium alloy, brass, copper, silver, gold, etc.
