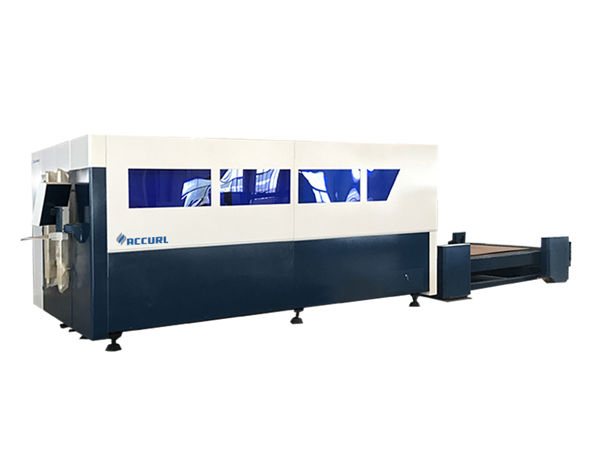

single platform cnc fiber laser cutting machine , metal sheet cutter

detalye ng Produkto

Sertipikasyon: CE / ISO / FDA / SGS / TUV
Mga Tuntunin sa Pagbabayad at Pagpapadala:
Minimum na Dami ng Order: 1
Presyong pwedeng pag-usapan
Mga Detalye ng Packaging: Wooden case
Oras ng Paghahatid: 15 mga araw ng pagtatrabaho
Mga Tuntunin sa Pagbabayad: T / T, L / C, Western Union
Kakayahang Nagtustos: 2000 mga yunit

Detalyadong Paglalarawan ng Produkto

Pangalan ng Produkto:	Fiber Laser Cutting Machine	Uri ng Laser:	Fiber Laser
Power ng Laser:	500-1000w	Nagtatrabaho Area:	1500 * 3000mm
Haba ng Laser:	1070-1090nm	Power Supply:	380V / 50Hz
Garantiya:	1 taon	Pinuputol ang Ulo:	Mga Raytools

Pangunahing pagsasaayos at kalamangan sa teknikal

Little to no maintenance costs
Parts process cost is very low
A "clean cut" surface quality is obtained
Fiber laser cutting is the fastest process for thin sheet metal
Reflective materials like aluminium,copper and brass can be cut with ease
Resonator life is over 100,000 working hours

^{Pangunahing Mga Tampok}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Mabilis na bilis ng paggupit makatipid ng oras ng pagtatrabaho.
3. Pag-save ng enerhiya at proteksyon sa kapaligiran;
4. Napakahusay na kalidad ng light beam: maliit na focus facula, fine cutting line, mataas na kahusayan sa pagtatrabaho, pinakamahusay na kalidad ng pagproseso.
5.Very mababang gastos sa pagpapanatili: optical transmisyon ng hibla, nang walang salamin sa lens; maaaring makatipid ng maraming gastos sa pagpapanatili;
6. Madaling operasyon ang mga produkto: hindi na kailangang ayusin ang optical path;
7. Flexible light effects effect: maliit na sukat, compact na istraktura at madaling matugunan ang mga kinakailangan sa pagmamanupaktura.}

^{Teknikal na Parameter}

^{Product name}	^{Fiber Laser Cutting Machine}
^{Uri ng Laser}	^{Fiber Laser}
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Pinuputol ang Ulo}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Ang bilis ng pagtakbo ng Max}	^600m/min
^{Posisyoning Katumpakan}	^{≤ ± 0.05mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^{Mesa sa Paggawa}	^{Rack working platform}
^{System ng Kontrol}	^{Cypcut control system}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Pagpapabilis ng Max}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^Paghahatid	^{Precise pinion and rack,dual-drive transmitting}

Descriptions	Parameter
Model	1530 Fiber laser cutting machine
Working Area	1500 * 3000mm
Power ng Laser	500W,1000W,15000W,2KW,3KW and so on, it depends on your demand.
Laser Wave Length	1064nm
Mesa sa Paggawa	Sawtooth
Maximum Idle Running Speed	1200mm/s
Katumpakan ng Posisyon	±0.05mm/m
Position Speed	20m / min
Minimum Line Width	± 0.02mm
Pagputol ng Pagkapal	0-12mm
System ng Kontrol	Cypcut
Position Type	red dot
Konsumo sa enerhiya	≤12KW
Working Voltage	380V / 50Hz
Auxiliary Gas	oxygen,nitrogen,air
Working life of fiber module	Mahigit sa 100000 na oras
Fiber laser cutting head	Lasermech made in USA
Mga lens ng pokus	Lasermech made in USA
Driver system	1500W Fuji servo motor made in Japan
Liner guider system	PMI made in Taiwan , (Option THK made in Japan)
Ipadala ang sistema	Dual Rack & Pinion type
Sistema ng rack	made in Germany
Chain system	Igus made in Germany
Delivery time	15 days

Application ng Produkto

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Aplikasyon

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
